Key Facts
Interesting facts and figures about the wind farm, at a glance.

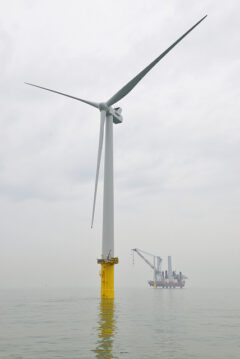

Wind turbines
116
Wind turbine generators
Installed capacity
400MW
Rating per turbine
3.45MW
Turbine height to hub
80m
Turbine height to blade tip
140m
Length of blades
55m
Diameter of blades
112m
Foundations
116
Monopile foundations
Foundation weight
550-800tonnes
Foundation length
60-80m
Transition piece weight
250tonnes
Cables
27km
Of buried onshore cables
Inter-array cables (total)
144km
Array cables strings each with nine to 10 turbines
12
Array cable voltage
33kV
Length of offshore export cables
16km
Onshore cable voltage
150kV circuits
Offshore substation
1
offshore substation
Offshore substation weight
3000tonnes
Offshore substation converts power to
150kV
Onshore substation converts power to
400kV
Substation jacket foundation weight
900tonnes
Project benefits
Project benefits
1
1,400GWh
UK homes supplied equivalent (approx.)
2
350,000
Approx emission reductions per annum
3
600,000tonnes
- Assumed capacity factors for offshore wind, The Contracts for Difference (Standard Terms) Regulations August 2014, DECC. Generation: 400MW x 0.39 x 8760 x 1,000 = 1,366,560,000KWh / 1,367GWh pa)
- Based on an average annual domestic household electricity consumption of 3,938 (BEIS)
- Every unit (kWh) of electricity produced by the wind displaces a unit of electricity, which would otherwise have been produced by a power station burning fossil fuel. This calculation is made using a static figure of 430g CO2/kWh representing the energy mix in the UK.
